ALFA ID36ACH 802.11ac AC1200 Industrial Grade Dual Band High Power Wi-Fi USB Adapter
ALFA ID36ACH is a high power 802.11ac compliant USB 3.0 Wi-Fi receiver/client with industrial grade casing. It is designed for use in industrial, military, and commercial environments, with a heavy duty heat dissipating case made out of the same material used in aircraft manufacturing. It is designed to connect to one specific computer and boosts just the range of that PC.
ID36ACH can be used in home environments also. It uses the same Realtek RTL8812AU chipset found in the ALFA AWUS036ACH indoor USB client, and is compatible with Microsoft Windows, Mac OS, and Kali Linux.

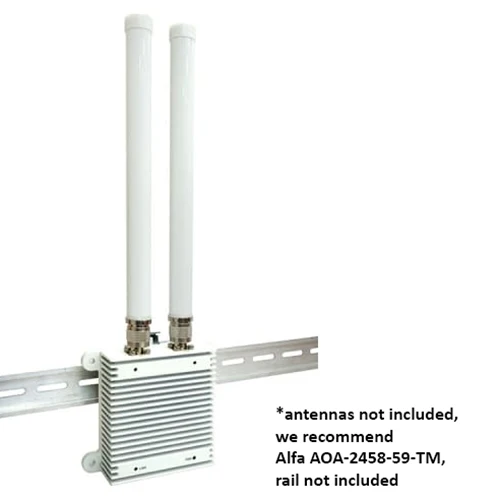

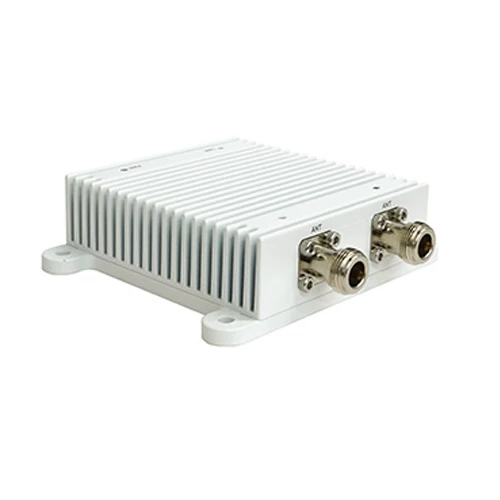

It features 2x N-female antenna ports (antennas not included). We recommend pairing with 2x AOA-2458-79AM dual band outdoor antennas.
Use this product to pick up WiFi signals on a specific computer from a long distance. This is not a repeater, so it cannot share Wi-Fi signal with multiple devices at one.
|
Chipset |
Realtek RTL8812AU |
|
WiFi Standards |
IEEE 802.11ac/a/b/g/n |
|
WiFi Frequency |
Dual Band 2.4GHz or 5GHz |
|
Antenna Connector |
N female x 2 |
|
Antenna Type |
2.4G/5GHz Dual-Band 5dBi dipole antenna |
|
Wireless Performance |
802.11a: up to 54Mbps 802.11b: up to 11Mbps 802.11g: up to 54Mbps 802.11n: up to 300Mbps 802.11ac: up to 867Mbps |
|
Wireless Security |
64/128 bit WEP,WPA/WPA2,WPA-PSK/WPA2-PSK,WPS |
|
Interface |
USB 3.0 |
|
OS Requirement |
Windows XP, Vista, 7, 8/8.1 and Windows 10 32/64bit, macOS 10.5 to 10.14 or later Linux |
Additional specs:
802.11g: -76dBm@54Mbps
802.11n: -70dBm@300Mbps
802.11ac: -54dBm@867Mbps
64/128bit WEP
WPA (TKIP with IEEE 802.1x)
WPA2 (AES with IEEE 802.1x)
WPA Mixed
Temperature: -40°C ~ 70°C
Storage
Humidity: 5% ~ 98% (Non-condensing)
Dimension: 125 x 102 x 34 mm
Weight: 680g

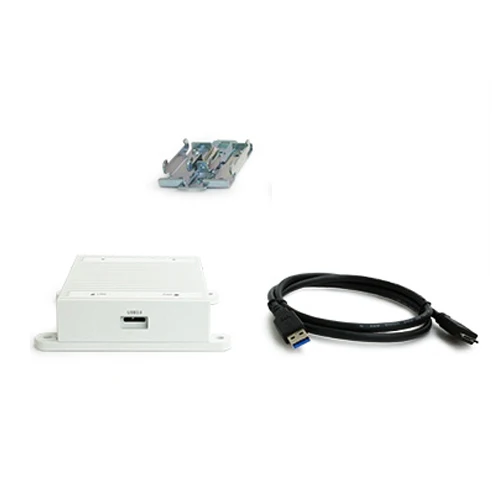

Box includes 1x ID36ACH dual band USB adapter, 1x 3ft USB 3.0 cable
Related Resources:
Video: Unboxing the ALFA ID36ACH Industrial Grade Dual Band High Power Wi-Fi USB Adapter
Warranty & Support:
Complimentary Telephone and Email/Live Chat Support (Click Here)
Sales tax is required in many states and will be added at checkout if applicable to your delivery state. Tax exempt forms can be sent to our support department.
Return Policy: This item can be returned for refund within 30 days of receipt. Because range can vary greatly based on your environment, if you are not sure a particular product will meet your range needs please contact us before buying. Orders with free shipping selected will incur a 10% restocking fee to help us cover the original shipping cost unless the item is defective or different from the advertisement. Any expedited shipping charges paid, including return shipping, are non-refundable. Items must be returned the way they were received, in new or like-new condition, with all pieces, documentation, and retail packaging (if applicable) included. For bulk purchases, see our bulk purchase return policy here.
