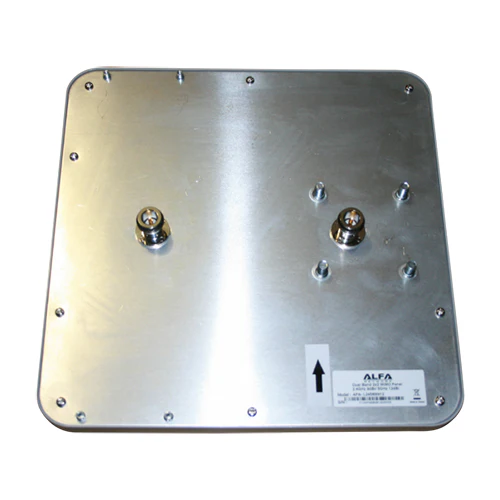

ALFA APA-L2458M912 12 dBi gain outdoor 2.4/5 GHz dual band WiFi directional panel antenna
APA-L2458M912 is a 12 dBi 2.4/5 GHz dual band directional outdoor panel antenna with 2x N-female connectors. It is a great way to boost your WiFi signal over a long distance when using with a compatible dual band wireless receiver like ALFA AWUS036ACH.

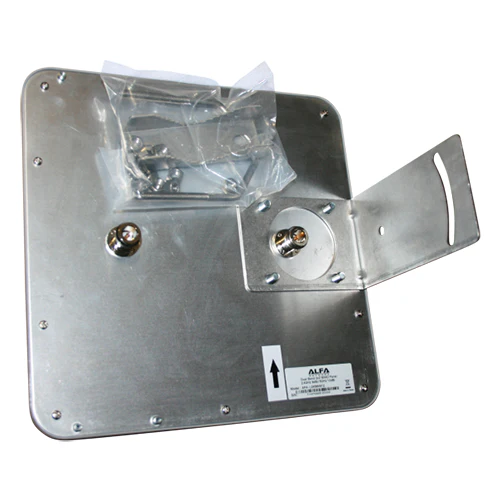

It includes the antenna and mounting bracket, brand new in box from ALFA Network. A directional antenna concentrates its gain all in the direction it is aimed. It will do a better job piercing obstacles and interference in that direction, but will not pick up as many signals in total as an omni-directional antenna.
We do recommend RokTape to seal all outdoor connection points.
Superior performance
Light weight
All weather operation
Includes tilt and swivel mast mount
Application:
2.4 or 5 GHz 802.11n or 802.11ac WiFi radio band
IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac Wireless LAN
Directional and multipoint applications
Public Wireless Hotspot
WiFi, RFID
Wireless Video Systems
Specifications:
Model: APA - L2458M912
Frequency: 2.4/5 GHz
VSWP: <= 1.8
Gain: 12 dBi for 5 GHz, 9 dBi for 2.4 GHz
Polarization: Vertical or Horizontal
Power Handling: 50 Watts
Beamwidth: H: 45º / V: 45º
Connector: Dual N-Female
Operating Temperature: -40ºC ~ +80ºC
Size: 20.5 cm x 20.5 cm x 2 cm
| Model | APA-L2458M912 |
|---|---|
| Frequency |
2400-2483MHz 5150-5850MHz |
| Gain |
9dBi @2.4GHz 12dBi @5GHz |
| V.S.W.R | ≦1.8 |
| Vertical Beamwidth | 45° |
| Horizontal Beamwidth | 45° |
| Radiation | Directional |
| Polarization | Vertical/Horizontal |
| Connector | 2x N Female |
| Dimension | 230 x 230mm |
| Mount Style | Pole |
| Material | UV Plastic |
| Mount Material | Stainless Steel |
| Wind Survival | 60m/s |
If you plan to use this with one of our popular indoor ALFA Wi-Fi receivers like the ALFA AWUS036ACH, we recommend also purchasing two of our RP-SMA to N-male coaxial extension cables.
Warranty & Support:
Complimentary Telephone and Email/Live Chat Support (Click Here)
Sales tax is required in many states and will be added at checkout if applicable to your delivery state. Tax exempt forms can be sent to our support department.
Return Policy: This item can be returned for refund within 30 days of receipt. Because range can vary greatly based on your environment, if you are not sure a particular product will meet your range needs please contact us before buying. Orders with free shipping selected will incur a 10% restocking fee to help us cover the original shipping cost unless the item is defective or different from the advertisement. Any expedited shipping charges paid, including return shipping, are non-refundable. Items must be returned the way they were received, in new or like-new condition, with all pieces, documentation, and retail packaging (if applicable) included. For bulk purchases, see our bulk purchase return policy here.
