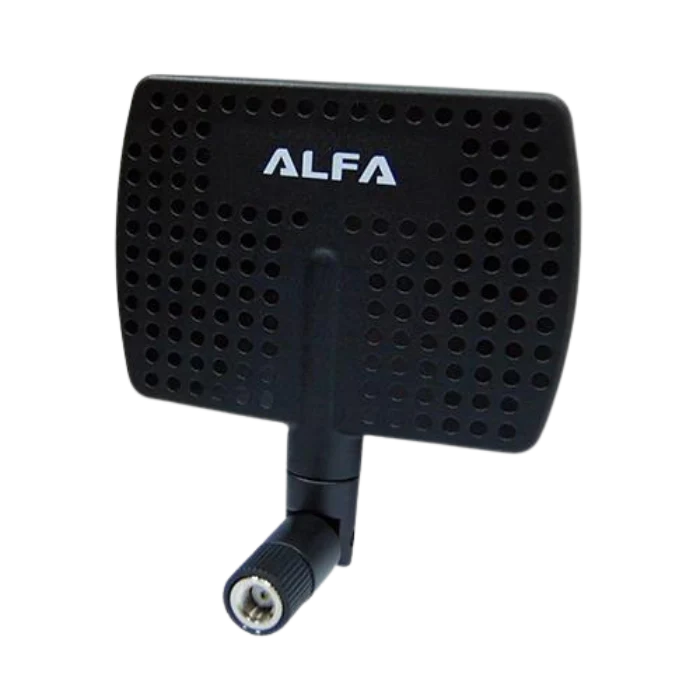

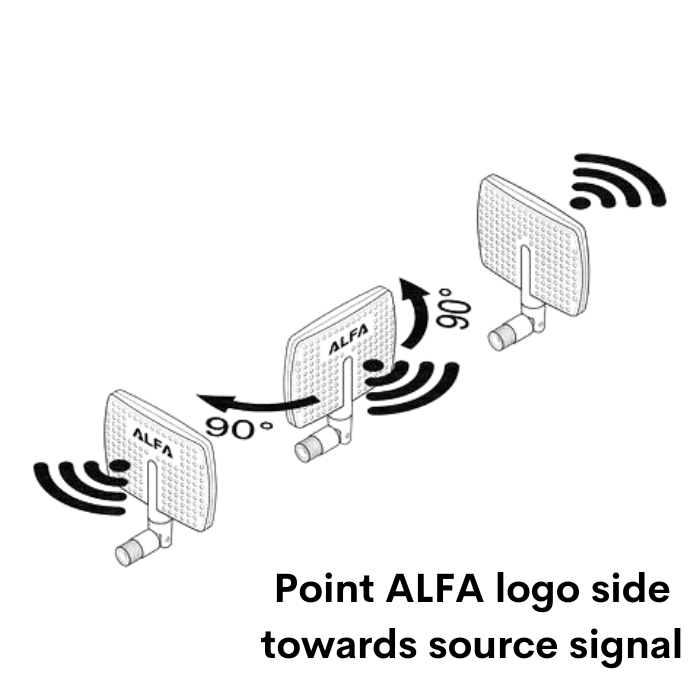

ALFA APA-M04 is a 7 dBi gain directional panel antenna with an RP-SMA antenna connector. This can connect to many ALFA Network brand wireless USB adapters and various drones. This will also work with other brand Wi-Fi adapters and routers/APs that have an RP-SMA port. This is rated for light duty indoor use. It can be used outdoors out of direct sunlight, but is not rated for long term outdoor use and long term exposure to elements. The side with the ALFA logo is the intended side to be pointed towards the source signal.

Specifications

Frequency	2.4 ~ 2.5 GHz
VSWR	≦2.0
Gain	7
Polarization	Linear, Vertical
Impedance	50 Ω
Connector	PR-SMA PLUG
Operation Temp	-10 ℃ ~ +55 ℃
Humidity	95 %@ 25 ℃
Dimension	61x 173x 145 mm
Weight	45.4 g

Radiation Pattern

Directional vs. Omni-directional antennas

This 7 dBi gain panel antenna is directional. Antennas that come with Wi-Fi adapters are often omni-directional. Omni-directional antennas can detect signals from multiple directions and work best when you are mobile and do not know where signals are originating. Directional antennas concentrate gain in a particular direction. While the antenna does not need to be in a perfect line of sight, it needs to be pointed in the general direction. Because directional antennas work best in the direction they are pointed, in many cases you will detect more signals overall with your omni-directional antenna, but find that your directional antenna may get stronger signal strength to signals it is aimed toward.

Additional Features:
- Engineer-tested compared to other directionals on the market to ensure excellent performance
- ALFA-branded, the trusted name in wireless networking
- Complies with 802.11g standard for 2.4Ghz Wireless LAN
- Contains RP-SMA antenna connector
- Works with all 2.4 GHz Wi-Fi devices that have an RP-SMA connector, not just ALFA brand ones
