RAK2287 Gateway Concentrator Module for LoRaWAN, SX1302 LoRa core

Product image 1
1 / 3

RAK2287 Gateway Concentrator Module for LoRaWAN, SX1302 LoRa core

Rokland is a Gold Level distributor for RAK Wireless. When comparing to price on RAK web site, RAK price is not inclusive of shipping to USA or 25% import tariffs. When buying from Rokland, items ship FREE from USA (to other US locations) so no additional shipping or tariffs apply.

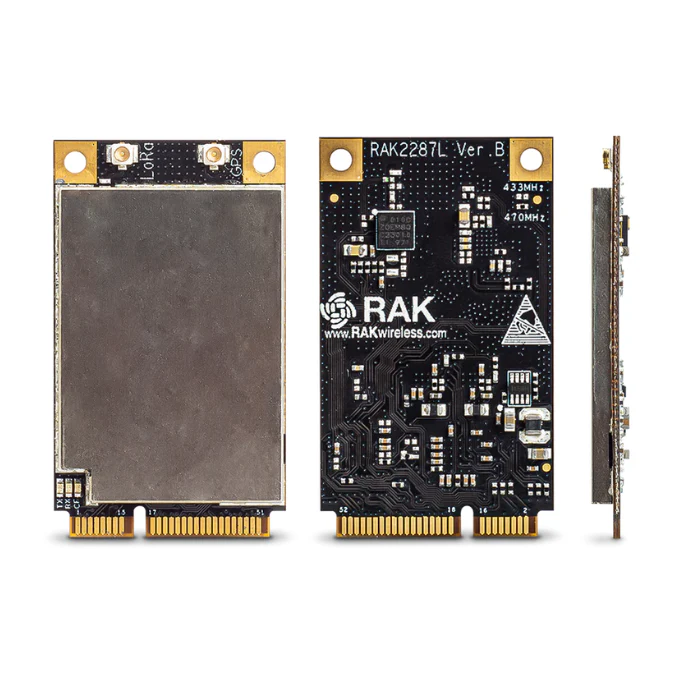

RAK2287 is an LPWAN Concentrator Module with a mini-PCIe form factor based on Semtech SX1302 LoRa chip.

This module is an exceptional, complete, and cost-efficient gateway solution offering up to 10 programmable parallel demodulation paths, an 8 x 8 channel LoRa® packet detector, 8 x SF5-SF12 LoRa® demodulators and 8 x SF5-SF10 LoRa® demodulators. It is capable of detecting an uninterrupted combination of packets at 8 different spreading factors and 10 channels with continuous demodulation of up to 16 packets. The module is well suited for Internet-of-Things (IoT) applications, that require node density of up to 500 nodes per km² in an environment with moderate interference.

Key Features

  • Designed with size efficiency in mind (mPCIeform factor).
  • Built around the newly released SX1302 baseband processor.
  • Compatible with 3G/LTEcard of mPCIe type (3V power domain).
  • Tx power up to 27dBm, Rx sensitivity down to -139dBm@SF12, BW 125 kHz.
  • SPI interface

Product Inclusions

  • 1x RAK2287
  • NO Ipex LoRa Antenna included
  • Choose variant above cart button for correct needed configuration

Documentation

Return Policy: Due to the high demand for this product, all sales for this product are final and we don’t accept returns or cancelations, and we are not able to issue a refund, unless the item is faulty or different from advertisement.

Sales tax is required in many states and will be added at checkout if applicable to your delivery state. Tax exempt forms can be sent to our support department.

Select Model
From $14.99

Original: $49.97

-70%
RAK2287 Gateway Concentrator Module for LoRaWAN, SX1302 LoRa core

$49.97

$14.99

Product Information

Shipping & Returns

Description

Rokland is a Gold Level distributor for RAK Wireless. When comparing to price on RAK web site, RAK price is not inclusive of shipping to USA or 25% import tariffs. When buying from Rokland, items ship FREE from USA (to other US locations) so no additional shipping or tariffs apply.

RAK2287 is an LPWAN Concentrator Module with a mini-PCIe form factor based on Semtech SX1302 LoRa chip.

This module is an exceptional, complete, and cost-efficient gateway solution offering up to 10 programmable parallel demodulation paths, an 8 x 8 channel LoRa® packet detector, 8 x SF5-SF12 LoRa® demodulators and 8 x SF5-SF10 LoRa® demodulators. It is capable of detecting an uninterrupted combination of packets at 8 different spreading factors and 10 channels with continuous demodulation of up to 16 packets. The module is well suited for Internet-of-Things (IoT) applications, that require node density of up to 500 nodes per km² in an environment with moderate interference.

Key Features

  • Designed with size efficiency in mind (mPCIeform factor).
  • Built around the newly released SX1302 baseband processor.
  • Compatible with 3G/LTEcard of mPCIe type (3V power domain).
  • Tx power up to 27dBm, Rx sensitivity down to -139dBm@SF12, BW 125 kHz.
  • SPI interface

Product Inclusions

  • 1x RAK2287
  • NO Ipex LoRa Antenna included
  • Choose variant above cart button for correct needed configuration

Documentation

Return Policy: Due to the high demand for this product, all sales for this product are final and we don’t accept returns or cancelations, and we are not able to issue a refund, unless the item is faulty or different from advertisement.

Sales tax is required in many states and will be added at checkout if applicable to your delivery state. Tax exempt forms can be sent to our support department.
