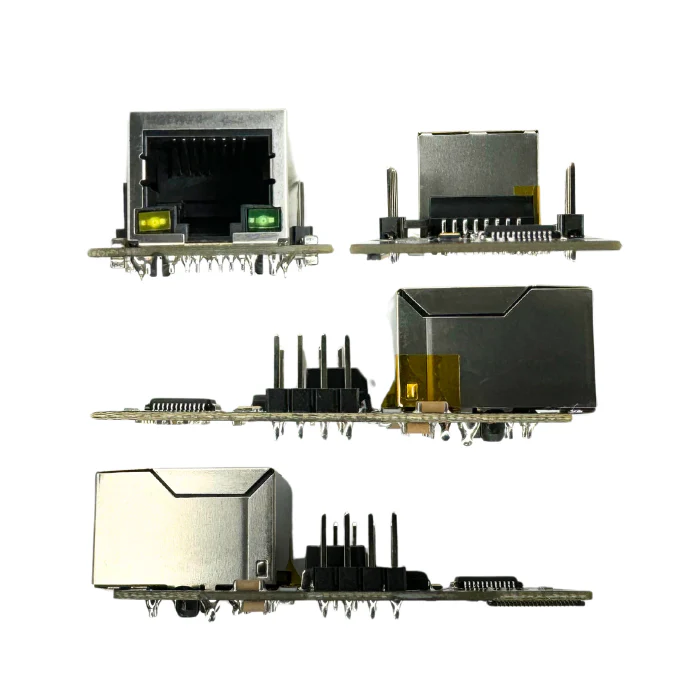

RAK Wireless WisBlock Ethernet Module RAK13800 VC PID: 100076
-
RAK13800VC is a WisBlock Ethernet board based on WIZnet W5100S which extends the WisBlock system to have ethernet interface compatibility. It supports 10BaseT and 100BaseT Ethernet transfer speeds. Optional (coming in 2022 Autumn Launc Event) it supports PoE (Power over Ethernet) to supply the WisBlock modules.
Features
- Based on WIZnet W5100S-L chip
- Support Hardwired Internet protocols
- Support four independent SOCKETs simultaneously
- Support SOCKET-less command
- Support Ethernet Power-down mode & Main Clock gating for power save
- Support WOL (Wake on LAN) over UDP
- SPI Host Interface
- Internal 16Kbytes Memory for TX/RX Buffers
- 10BaseT/100BaseTX Ethernet PHY Integrated
- Support Auto-Negotiation
- Support Auto-MDIX only when Auto-Negotiation mode
- Network Indicator LEDs
- Supply Voltage: 2.97 V ~ 3.63 V
- Size: 25 x 50 mm
Documentation
- RAK13800 Quick Start Guide
- Datasheet
- WisBlock Quick Start Guide
- WisBlock Source Code Repository(opens new window)
- RAK13800 3D Model(opens new window)
- 40-Pin Male Connector 3D File(opens new window)
- WisBlock IO Tutorial
