RAK Wireless RAK12500 GNSS GPS Location Module u-blox ZOE-M8Q SKU 110016
The RAK12500 WisBlock GNSS/GPS Location Module is based on the u-blox ZOE-M8Q and designed to be part of a production-ready IoT solution in a modular way. It must be combined with a WisBlock Core and a Base module to work as an LPWAN tracker device.
The RAK12500 uses the u-blox ZOE-M8Q module. It supports a wide variety of satellite data protocols such as GPS, GLONASS, QZSS, and BeiDou. This ensures the retrieval of precise location data. The module features exceptional performance, high sensitivity, and minimal acquisition time. A very suitable module for your low-power IoT solution needs
Key Features
- Uses the very accurate GNSS Module: u-blox ZOE-M8Q chip
- Location Accuracy of ±2.5 meter
- Velocity Accuracy of ±0.05 m/s
- GPS, GLONASS, QZSS, and BeiDou Satellite support
- Serial and I2C communication to WisBlock Core support
- 10 Hz Update Rate
- 29 seconds Location Fix from Cold Start, 1 second from Hot Start
- Module Size: 10 mm x 23 mm

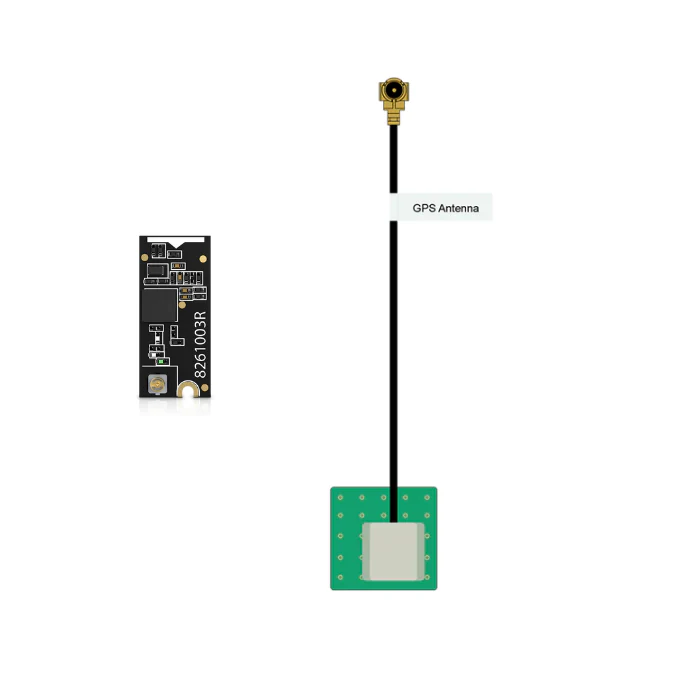

Package Inclusion
- 1pc RAK12500

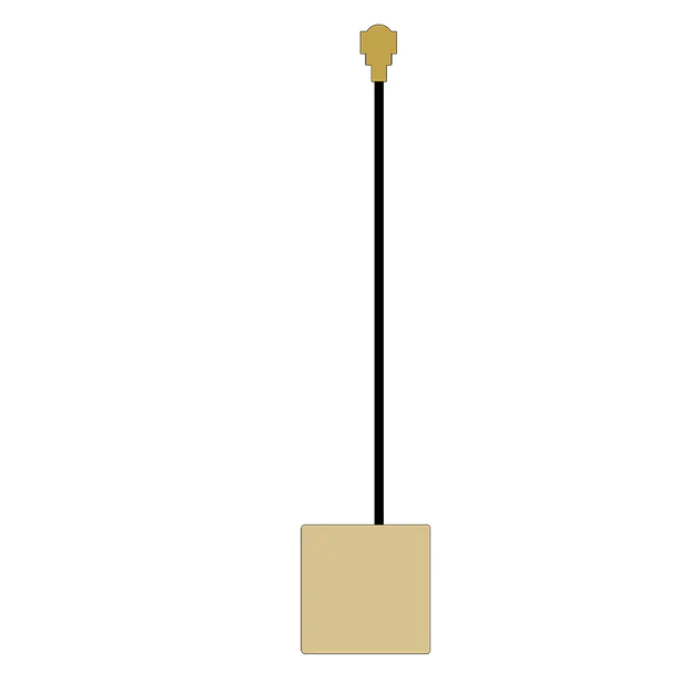

- 1pc GPS Antenna
Documentation
- RAK12500 Quick Start Guide
- Datasheet
- WisBlock Quick Start Guide
- WisBlock Source Code Repository
- RAK12500 GNSS Location Module 3D Model
- 24-Pin Male Connector 3D File
- WisBlock Sensor Tutorial
Examples:
For All WisBlock Core Modules:
Tutorials
Warranty & Support:
Complimentary Telephone and Email/Live Chat Support (Click Here)
Online Technical Manuals and Instructions (Click Here)
Sales tax is required in many states and will be added at checkout if applicable to your delivery state. Tax exempt forms can be sent to our support department.
Return Policy: 30 days. Buyer pays return shipping unless faulty or wrong item shipped.
